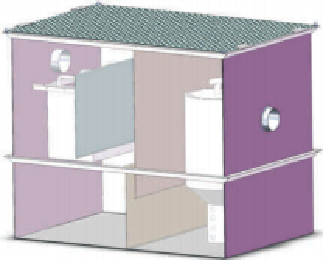

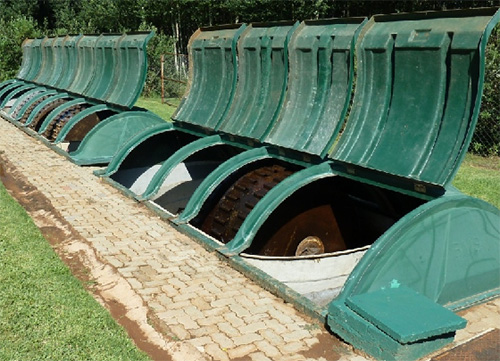

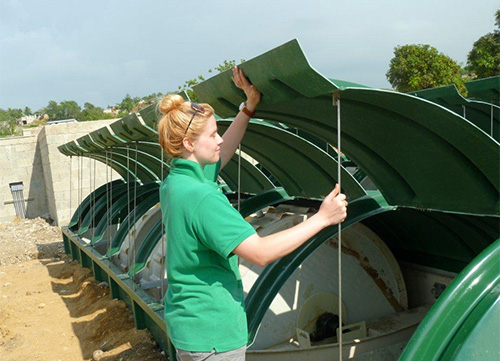

1.The SW Decentralized Wastewater Treatment Device is a novel process product that expands on the core technology of biological micro-power disc, widely used for the treatment of domestic sewage in rural areas, tourist scenic spots, resorts, hotels, and other similar locations.

2.The equipment boasts a range of advantages including effective treatment, stable operation, simple maintenance, low operating costs, and minimal land usage.

3.The treated effluent from the SW device meets the Class I A standard of the "Urban Wastewater Treatment Plant Pollutant Discharge Standard" (GB18918-2002).

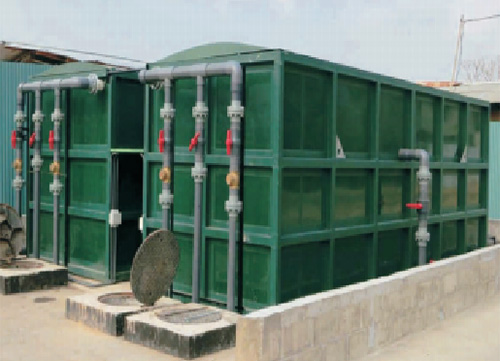

1.The SW-Y is a specialized integrated wastewater treatment device designed specifically for hospital sewage. It utilizes patented biological film hanging and self-cleaning technologies, and by forcibly mixing air into the liquid, it addresses the common issue of clogging in conventional biological treatments, which often leads to reduced efficiency.

2.The disinfection part of the system employs a pressure-type forced medication method with rapid mixing, resulting in a short disinfection reaction time, low medication dosage, low noise, stable system operation, and cost-effective investment.

3.To meet different discharge standards, the device is categorized into Pre-treatment Standard (equipment model SW-Y-A) and Discharge Standard (equipment model SW-Y-B), ensuring compliance with emission standards.

1.Features a modular design with a small footprint

2.Low subsequent operational costs and stable treatment effects.

3.When wastewater continuously passes through a reactor filled with mobile media, microorganisms grow on the media to form a biofilm. A large number of microorganisms reproduce on the biofilm, where heterotrophic and autotrophic microorganisms utilize carbon (C), nitrogen (N), phosphorus (P), and other elements in the water for metabolism.

4.The effluent stably meets the Class I A standard of the "Urban Sewage Treatment Plant Pollutant Discharge Standard" (GB18918-2002).

1. Product Usage:Suitable for wastewater treatment in restaurants, fast-food outlets, canteens, hotels, and other catering establishments.

2. Types of OGA Oil-Water Separators:

Manual OGA Oil-Water Separator

Automatic OGA Oil-Water Separator

Automatic High-Efficiency OGA Oil-Water Separator

3. Effluent Quality: The treated wastewater meets the national comprehensive discharge standards for grease content and suspended particle levels as stipulated in the "GB8978-1996" Grade III standard. It complies with the discharge permit requirements of environmental protection departments and meets the standards for municipal sewer network access permits.

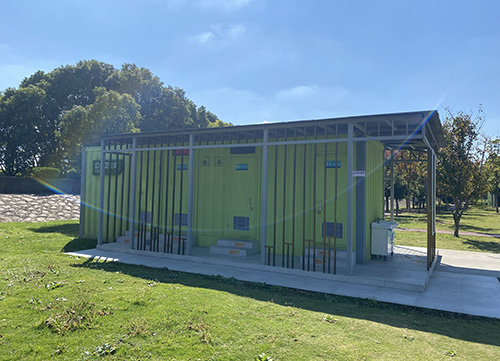

1. Consists with Only backend for septage treatment and recycling suitable for rehabilitation of conventional public toilets.

2. Accommodates a daily average of 6,000 uses

3. Can easily converts an conventional public toilet into a fully flushable toilet with water from self-recirculation and are able to achieve higher sanitation standards; No sewage connection and water supply is required.

4. Modular and easy for transportation, installation and commissioning

5. Cost per usage over a 10-year equipment life, taking into account of the capital cost plus O&M cost (labor, parts and electricity etc), is 0.02 RMB .

6. Can be equipped with solar panel when there is no power connection.
